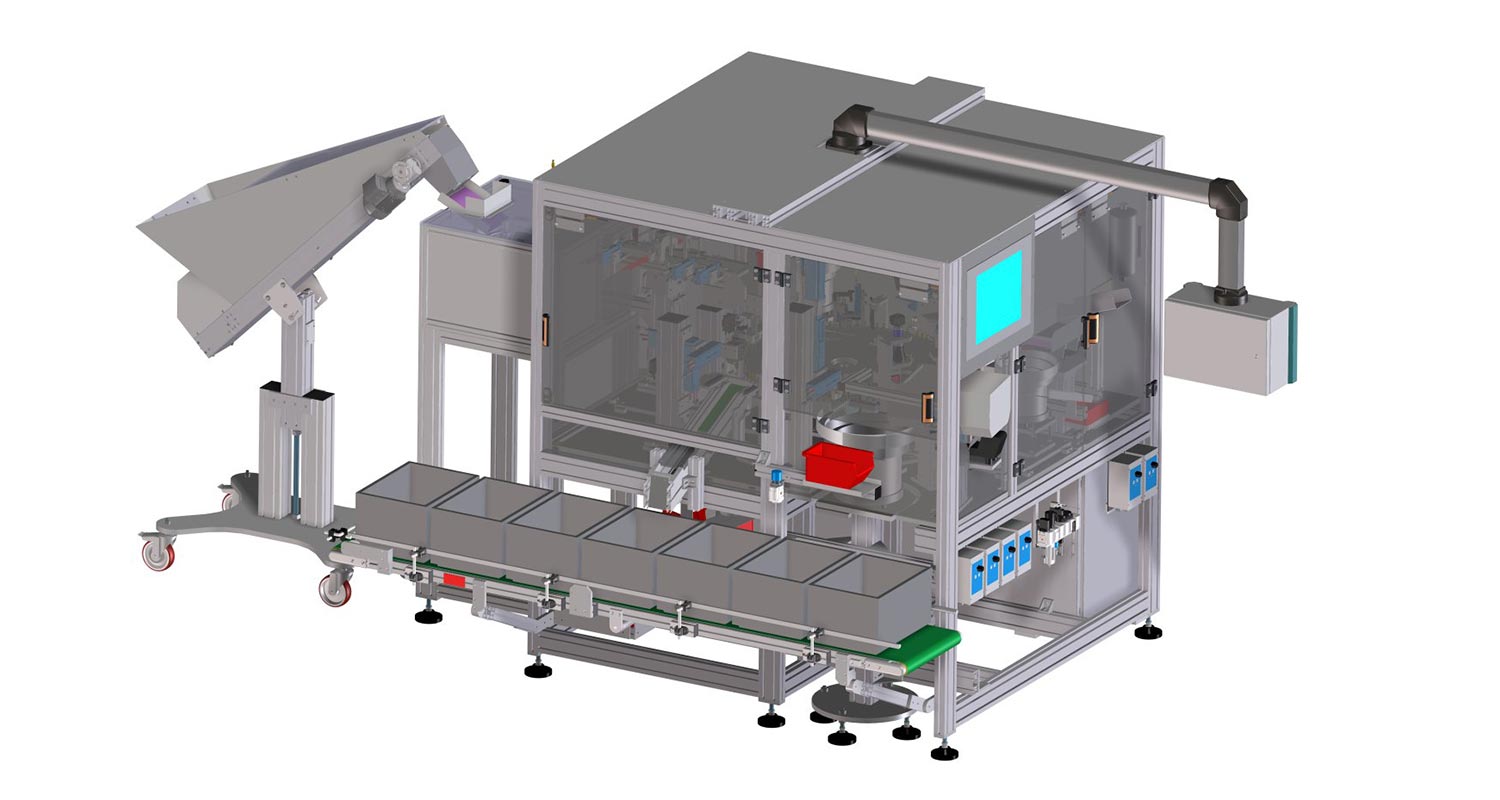

The machine is designed and built to assembly the o-ring,

clip and cover onto various types of fitting.

All the components are feeded and assemblied automatically.

The movement of the part through the various stations is performed by a rotary table.

The assembled product is controlled with camera system to detect anomaly and split good part from bad parts.

Assembled product

Look at the video

The gallery

Technical features

langENProduct dimensionsmin. DN6N – max. 1”
langENCadence (piece / hour)2000
langENComponents assembled5
langENProduct types-
langENOperators in charge1 only for vibratory load
langENProduct change20 min.
